$ 94.47

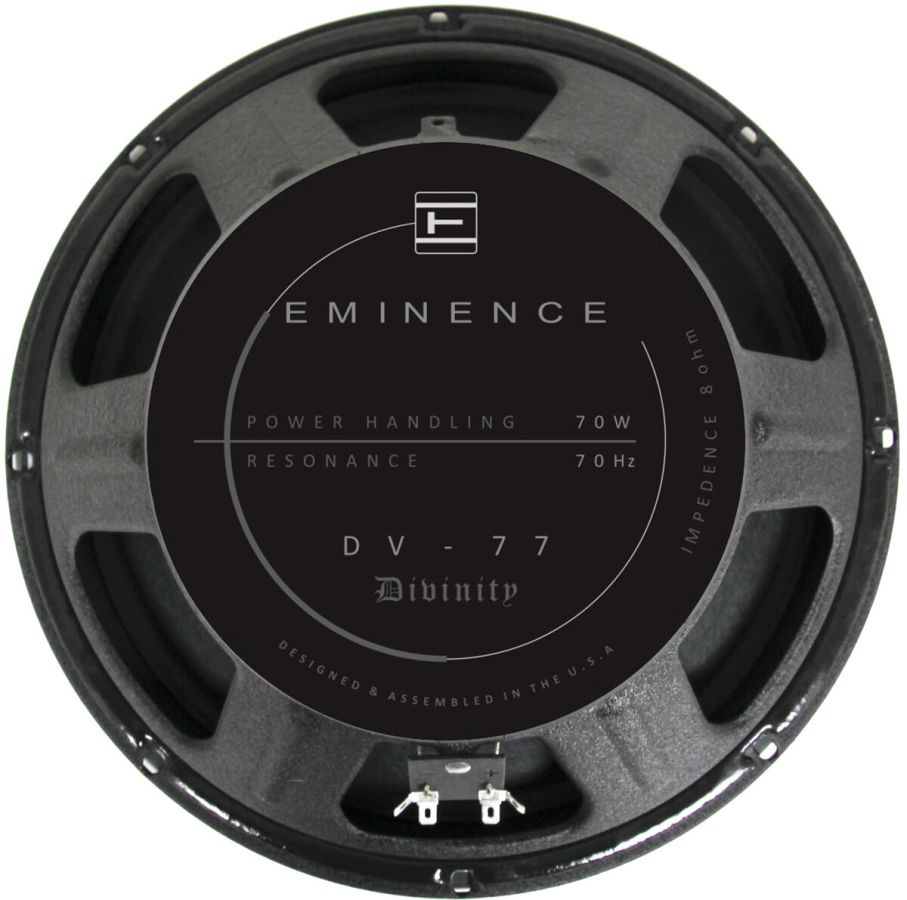

Eminence DV-77: 12″ Guitar Speaker by Mick Thompson Introducing the DV-77 Mick Thompson Signature Speaker. Designed by Mike Smith of OMEGA and Mick Thomson of Slipknot, this speaker represents the future of Mick’s signature tone. Assembled in the USA by Eminence, the DV-77 leverages a new custom-designed basket, new voice coil design, new spider design, and a carefully chosen UK made Kurt Mueller cone to deliver exceptional tone and reliability. From the beginning, the focus of this speaker was balance, response, and a very musical tone. Delivering tight punchy lows, thick harmonically complex mid-range & detailed highs without excess fizz. Not a clone or a copy, this speaker was designed in the studio and proven on the stage. With over a year of real-world testing by Mick, the DV-77 Mick Thompson Signature Speaker is the perfect addition to your rig. Click Here to Download 8 ohm PDF Spec Sheet Click Here to Download 16 ohm PDF Spec Sheet SPECIFICATION Nominal Basket Diameter 12″, 304 mm Nominal Impedance* 8 Ω Power Rating* Program Power N/A Watts 70 W Resonance 70 Hz Usable Frequency Range 70 Hz – 5.3 kHz Sensitivity* 100.6 dB Magnet Weight 50 oz. Gap Height 0.313″, 7.95 mm Voice Coil Diameter 1.75″, 44 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 70 Hz DC Resistance (Re) 6.47 Ω Coil Inductance (Le) 0.49m H Mechanical Q (Qms) 11.46 Electromagnetic Q (Qes) 0.45 Total Q (Qts) 0.43 Compliance Equivalent Volume (Vas) 71.19 liters / 2.51 cu.ft. Peak Diaphragm Displacement Volume (Vd) 41.04 cc Mechanical Compliance of Suspension (Cms) 0.19 mm/N BL Product (BL) 13.18 T-M Diaphragm Mass Inc. Airload (MMs) 27 grams Efficiency Bandwidth Product (EBP) 156 Maximum Linear Excursion (Xmax) 0.79 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.079 cu.ft. / 2.25 liters Overall Diameter 12.24″, 310.9 mm Baffle Hole Diameter 11.09″, 281.69 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.134″, 3.4036mm Mounting Holes B.C.D. 11.69″, 296.93mm Depth 5.19″, 131.826 mm Net Weight 10.4 lbs, 4.72 kg Shipping Weight 12.1 lbs, 5.49 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Nomex former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap
