$ 96.62

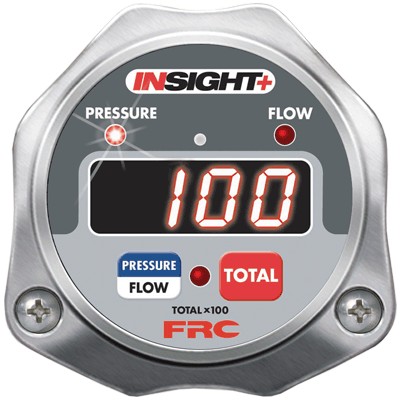

Description INSIGHT PLUS Digital Pressure and Flow Indicator fpa500 spec sheet The Insight is an all digital pressure and flow indicator that displays the pressure and the flow rate at the discharge. This digital pressure and flow indicator has a 4-digit LED display with daylight bright digits 0.56 inch high. The meter electronics are self contained and all program features are accessed via push buttons on the front of the display. The pressure/flow indicator is able to communicate with other display modules over a datalink. This technology allows for remote displays, the display of flow for multiple discharges (summing), and the totalization of flow for multiple discharges (accumulation). Pressure information is from a pressure sensor and flow rate is provided by a paddlewheel type flow sensor, both are mounted in the discharge. This information is processed and shown on the digital display. STANDARD FEATURES Displays GPM and PSI Directly All Aluminum Housing High and Low Flow Warnings Automatically Adjusts LED Intensity for Day or Night Operation FRC Datalink Interface for Primary/Remote Operation Multiple Flow Rate Calibration Points Programmable for PSI/Bar/kPa Paddlewheel Style Flow Sensor Internal Micro-Processor Simple Installation Color Coded Bezel available in NFPA color code Linearizer Feature – allows for calibration at multiple flow rates Safeflow Feature – preset excessive and inadequate flow warning settings SPECIFICATIONS Supply Voltage: 9-30 VDC Supply Current: 1.5 Amps Max Display Dimensions: 3.25″ wide, 3.25″ high, 2″ deep 2.75″ panel cutout required PLUMBING THE FLOW SENSOR The proper installation of the flow sensor is essential. The final accuracy of the digital flow display will be based on the plumbing choices made at installation. Refer to the Flow Sensor page for more details. Other Options DFAoption-AL1 Flow sensor mount, alum boss DFAoption-AL2 Flow sensor mount, alum boss flow cond. DFAoption-C00 Flowmeter, Insight, bezel, chrome, standard DFAoption-C01 Flowmeter, Insight, bezel, brown DFAoption-C02 Flowmeter, Insight, bezel, red DFAoption-C03 Flowmeter, Insight, bezel, orange DFAoption-C04 Flowmeter, Insight, bezel, yellow DFAoption-C05 Flowmeter, Insight, bezel, green DFAoption-C06 Flowmeter, Insight, bezel, blue DFAoption-C07 Flowmeter, Insight, bezel, purple DFAoption-C08 Flowmeter, Insight, bezel, grey DFAoption-C09 Flowmeter, Insight, bezel, white DFAoption-C10 Flowmeter, Insight, bezel, black DFAoption-C11 Flowmeter, Insight, bezel, burgundy DFAoption-C12 Flowmeter, Insight, bezel, silver DFAoption-HL1 Flow sensor mount, Hale spacer adapter DFAoption-K6 Flow sensor mount, GF series to DFA400 retrofit DFAoption-K7 Flow sensor mount, DF3000 to DFA400 retrofit DFAoption-PT1 Flow sensor mount, pipe tee DFAoption-PT2 Flow sensor mount, pipe tee, flow cond. DFAoption-SC1 Flow sensor mount, saddle clamp, standard DFAoption-SC2 Flow sensor mount, saddle clamp, flow cond. DFAoption-SC3 Flow sensor mount, saddle clamp, CL1 neck down DFAoption-SS1 Flow sensor mount, SS boss DFAoption-SS2 Flow sensor mount, SS boss, flow cond. DFAoption-ST1 Flow sensor mount, steel boss DFAoption-ST2 Flow sensor mount, steel boss, flow cond. DFAoption-WA1 Flow sensor mount, Waterous adapter
